Isolofoam ISORAD V2 300 48" x 48" x 1/2"
C$21.00
On Sale
was C$26.23 Save 20%
In stock: 96 available
Save this product for later
Isolofoam ISORAD V2 300 48" x 48" x 1/2"
Product Details
UPC: ISORADV2
Brand: Isolofoam
ISORAD V2
Rigid radiant heating floor insulation - Under slab
WITH MULTIDIRECTIONAL TUBE-RETENTION SYSTEM
By combining the insulation performance of an expanded polystyrene board with a multidirectional tube-retention system, ISORAD V2 provides the perfect solution for under slab insulation when embedding a radiant heating system in concrete. It can also be used for terrace and exterior slabs/ sidewalks/ parking lots to accelerate melting of ice and snow.
NEW CONSTRUCTION
Residential. Commercial. Industrial. Institutional. Agricultural.
Advantages
ELIMINATES HEAT LOSS
Efficient thermal barrier. ISORAD V2 prevents heat loss through the soil, maximizing the efficiency of the hot-water or glycol radiant heating system in the home and garage.
SECURED AND RESISTANT PANELS
High-density clipping panels. The efficient, four-sided, ISOCLICK ALIGN interlocking system ensures pucks alignment and tubing retention, as well as easy and fast panels installation.
IDEAL TO DELINEATE HEATING ZONES
Multidirectional tube-retention system. Positioning tubing with ISORAD V2 panels is a simple task. The elevated pucks keep the tubes in place at regular intervals, while also allowing them to be oriented in multiple directions.
INSTALLATION: MORE EFFICIENCY
Speed and efficiency on the job site. By combining the insulation performance of an expanded polystyrene board with a multidirectional tube-retention system, the step of fixing the tubes to a wire mesh is eliminated. Makes the insulation and hot-water/glycol heating system installation easier and faster.
Efficient thermal barrier
- Ensures continuous and uniform insulation under the concrete slab.
- Increases comfort and energy efficiency.
- Stable and permanent insulation value.
- Generates energy savings year after year.
High-density clipping panels
- The ISOCLICK ALIGN 4-sided clipping system prevents panels from shifting and the appearance of non-insulated gaps.
- Holds up to foot traffic when installing the tubing.
- Different compressive strengths available.
- Lightweight, easy and fast to install panels, assisted by ‘start’ arrow and integrated cutting lines.
- Resistant to freezing, thawing, water and humidity.

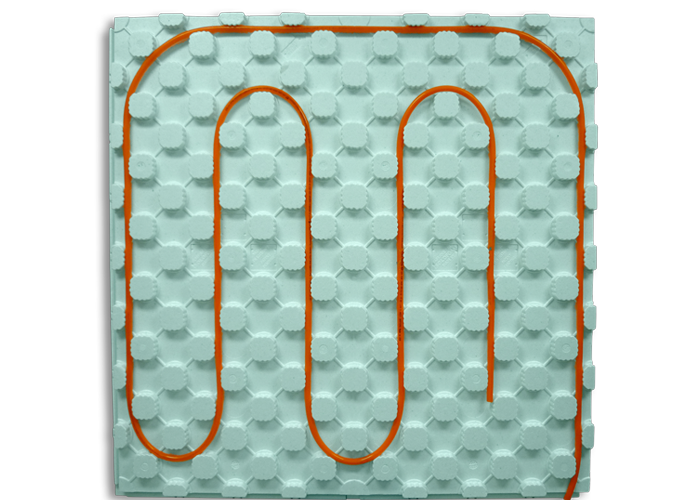

Multidirectional tube-retention system
- Excellent retention of 1/2″ or 5/8″ diameter tubing.
- Ensures regular interval between tubes.
- Allows to respect the plans and easily realize heating zones according to design.
- The step of fixing the tubes to a wire mesh is eliminated.
- Less physically demanding and easy to install by one person.
Speed and efficiency on the job site
- Tubing easy to insert between the pucks—just walk it in!
- Eliminates the costs and effort of installing wire mesh and/or attaching tubing when slab reinforcement is not required.
- Reduces the number of steps and components required for a hydronic radiant floor system installation.
- Optimizes working time and labour costs.
